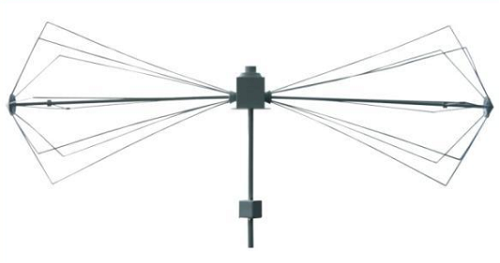

TX300 VHF Biconical Antenna

1 function

The antenna can receive and transmit the space signal.

2 design requirements

a) The principle of "practical, reliable, advanced and economical" is carried out in the equipment development.

b) Carry out quality management in strict accordance with relevant national military standards to ensure the reliability of equipment.

3 SPECIFICATION

3.1 main technical indexes

a) Frequency range: 30MHz ~ 300MHz

b) SWR of standing wave: ≤ 2.5;

c) Impedance: 50 ohm;

d) Transmitting power: > 50W;

e) Gain: - 8dbi ~ 2dBI

3.2 shape technical requirements

a) External surface painting: customizable

4 environmental requirements

Working temperature: - 40 ℃ ~ + 65 ℃;

Storage temperature: - 55 ℃ ~ + 70 ℃.

5 wind resistance

Six wind protection accuracy, eight wind normal work, ten wind is not damaged

6 reliability

MTBF ≥ 1200 hours.

MTTR ≤ 30 minutes.
