CAM-GX5 Cellular Activity Monitor

FEATURES

• Detects 2G/3G/4G and the latest 5G devices -plus WiFi/Bluetooth/2.4GHz and 5GHz Devices

• Detects Mobile Phones, Smartphones, GPS Trackers, SMS (Texts), GSM Bugs, 3G/4G/5G Video, Bluetooth & WiFi Devices, Store & Forward devices

• Worldwide Cellular Coverage - Simply select the relevant region.

• Separate 2.4GHz & 5GHz band detector for WiFi/Bluetooth/Video and other latest generation devices

• Increased Sensitivity across all bands - Detects signals from up to 50 metres

• Cellular Event Log records Time/Date, Band, Duration & Signal Strength of up to 4000 Events

• Log can be viewed on screen and downloaded to USB stick for storage/viewing on a computer

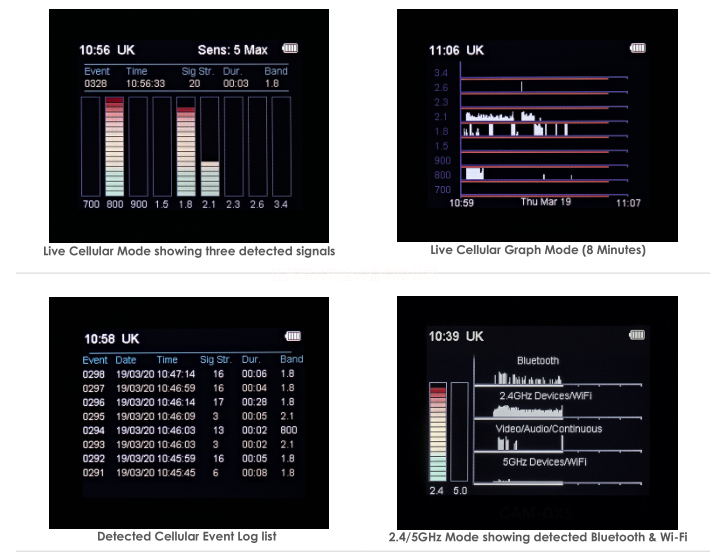

• Graph Mode plots real time or historical graph of all detected cellular bands

• 3.5-inch Colour TFT Display with easy to use menu driven operation.

• Adjustable hinged antenna

• Audible Signal Strength ‘Beep’ and Silent Vibrate Mode.

• Machined Aluminium Enclosure for maximum durability

• Internal Lithium Polymer battery pack – Charger supplied

• Supplied in Heavy Duty Military Standard Carry case

The CAM-GX5 Cellular Activity Monitor is a handheld multiband cellular signal detector ready for the latest generation of 5G devices (as well as existing 2G, 3G & 4G), plus the latest WiFi/Bluetooth devices.

TECHNICAL SPECIFICATION

Typical Performance Characteristics - at 20 degrees C

Regions covered UK, EUROPE, ASIA, AFRICA, NORTH AMERICA, SOUTH AMERICA, AUSTRALIA

Detection Frequency Range International bands - (300 MHz to 6 GHz) – Maximum 10 displayable bands

Sensitivity -70 dBm Max

Display TFT Colour 3.5” High Contrast Graphic Display

Battery Internal Lithium-Polymer rechargeable

Operating duration – fully charged battery – up to 6 hours

Charging Micro USB socket - Charge Time ~ 4 hours

Operating Temperature Range -15 to +50 degrees C - Relative Humidity < 90%

Dimensions 173 mm x 103 mm x 25 mm

Weight Main Unit - 400g

Carry Case Complete - 1.6 Kg

Signal Processing and Control RISC Based Microcontroller with real time clock

Event Log Maximum 4000 Events – Cellular Log

Maximum 24 Hours – 2.4/5GHz/Wi-Fi/Bluetooth Log

USB Socket For USB Stick download only
