ORION HX Deluxe Non-Linear Junction Detector

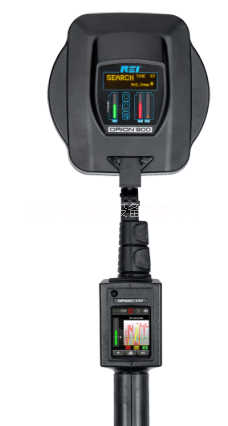

The ORION HX Deluxe Non-Linear Junction Detector

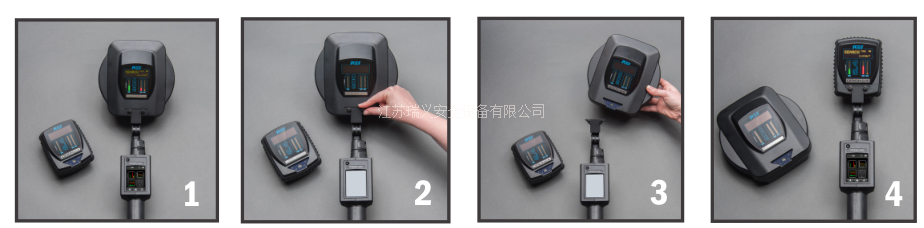

includes antenna heads from the ORION 2.4 HX and the
ORION 900 HX. These interchangeable antennas are stored in a single, hard shell case for easy transportation to prepare technical security professionals for a variety of environments.

MODEL INFORMATION : The transmit power of the ORION 2.4 HX is 3.3 W EIRP and automatically searches for quiet operating frequencies between 2.404 and 2.472 GHz. It is FCC and IC compliant. The G model , with 6.6 W EIRP transmit power, is available to entities, agencies, and persons not restricted by FCC and IC. Both models are CE marked for public safety and security.


The ORION 900 HX excels at detecting older, less refined circuitry and also penetrating building and construction materials. The longer 900 MHz wavelength provides better penetration through thicker, denser materials including brick and concrete.

image.pngimage.pngTECHNICAL SPECIFICATIONS

TRANSMITTER

2.4 HX transmit power: 3.3 W; G model: 6.6 W

900 HX transmit power: 1.4 W; G model: 3.2 W

Power control: manual or auto control

2.4 HX frequency band: 2.404 GHz - 2.472 GHz

900 HX frequency band: 905 - 925 MHz; G model: 840 - 960 MHz

Transmit channels: manual or auto selection, more than 60 available

Transmit modulation: digital spread spectrum, 1.25 MHz bandwidth


RECEIVER

Simultaneous 2nd & 3rd harmonic receive

Digitally correlated

2.4 HX frequency band:

Second Harmonic (4.808 GHz – 4.944 GHz)

Third Harmonic: (7.212 GHz – 7.416 GHz)

900 HX frequency band:

Second Harmonic (1810 MHz - 1850 MHz);

G model (1680 MHz - 1920 MHz)

Third Harmonic: (2715 MHz - 2775 MHz);

G model (2520 MHz - 2880 MHz)

2.4 HX sensitivity: -140 dBm for both harmonics

900 HX sensitivity: -130 dBm for both harmonics


DISPLAY

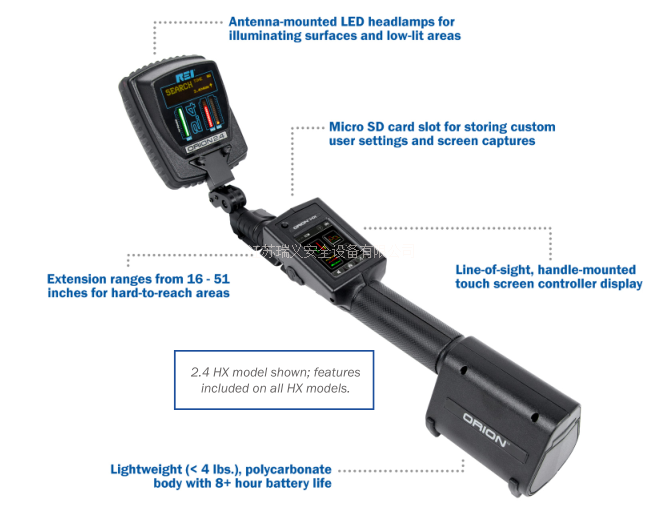

Handle mounted touch screen controller display; keypad model also available

Antenna-mounted display

Bar graph display for transmit power level, 2nd harmonic level, 3rd harmonic level, data field display, for other information (operation mode, low battery, volume, DSP gain, etc.)

MECHANICAL

Extension lengths: 16-51 in (40.6 - 129.5 cm)

Case dimensions: 6.25 in x 14.9 in x 18.5 in

(15.9 cm x 37.8 cm x 47.0 cm)

ORION 2.4 HX dimensions: 22.4 in x 3.75 in x 3 in

(57 cm x 9 cm x 7.5 cm)

ORION 900 HX dimensions: 23 in x 3.75 in x 3 in

(58.4 cm x 9 cm x 7.5 cm)

Overall Extended Length: 58 in (147 cm)

ORION 2.4 HX weight w/ battery: 3 lbs (1.4 kg)

ORION 900 HX weight w/ battery: 3.6 lbs (1.6 kg)
