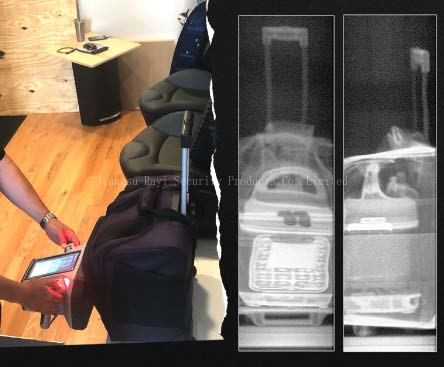

PX1 Handheld backscatter x-ray imager

See through More power equals better image performance. With 140 keV and our patented optics, seeing through more material with greater depth is now possible.

Reduce Uncertainty We know the risks involved. That is why we have worked to bring the highest surface penetration handheld system to the market –keeping our security forces safe and one step ahead at all times.

Optimizing time Portability and superior image quality can definitely expedite the inspection process by allowing for quick scans and dispositioning of potential threats without compromising safety and security.

Accomplish the mission Our focus is to develop innovative technology that empower those who proudly serve to keep society safe from threats and uncertainties.

SYSTEM SPECIFICATIONS

SYSTEMSPECIFICATIONS

• X-ray Source: 140 keV X-ray tube

SCANNER DIMENSIONS & WEIGHT

• Length: 21.1 cm (8.3 in.)

 • Width: 28.2 cm (11.1 in.)

 • Height: 18.5 cm (7.3 in.)

 • Weight: 4.3 kg (9.5 lbs.)

OPERATING TIME

• Scanner Battery: 6 hours

 • Scan Speed: 12.5 cm (5 in.) – 77 cm (30 in.) per second

OPERATING SYSTEM

• System Software: Android 10

TRANSPORT CASE DIMENSIONS

• Length: 57.9 cm (22.8 in.)

 • Width: 46.5 cm (18.3 in.)

 • Height: 29.7 cm (11.7 in.)

 • Total System Shipping Weight: 13 kg (29 lbs.)

ENVIRONMENT

• Operating Temperature: -20 °C (-4 °F) to 60 °C (140 °F)

 • Storage Temperature: -40 °C (-40 °F) to 70°C (158 °F)

 • Operating Conditions: Rain, snow, high winds, and altitudes up to 4,500 m (14,764 ft) nominally

 • In Compliance with: CE directive 2004/108/EC RADIATION SAFETY

• Complies fully with all applicable U.S. federal health and safety regulations allowable dose for the general public

 • To help prevent inadvertent X-ray emission, the system is equipped with a series of interlocks and visual indicators

 • Contains no live radiation source SYSTEM COMPONENTS

• PX1 scanner

 • Rugged transport case

 • Two (2) rechargeable batteries

 • Battery charger

 • Data transfer cable

 • Shoulder strap

 • Two (2) wrist straps

 • Quick Start Guide

SYSTEM OPTIONS

• Covert Operations Backpack: Easy transport of system and components

 • Unlimited High-Speed Data Package
