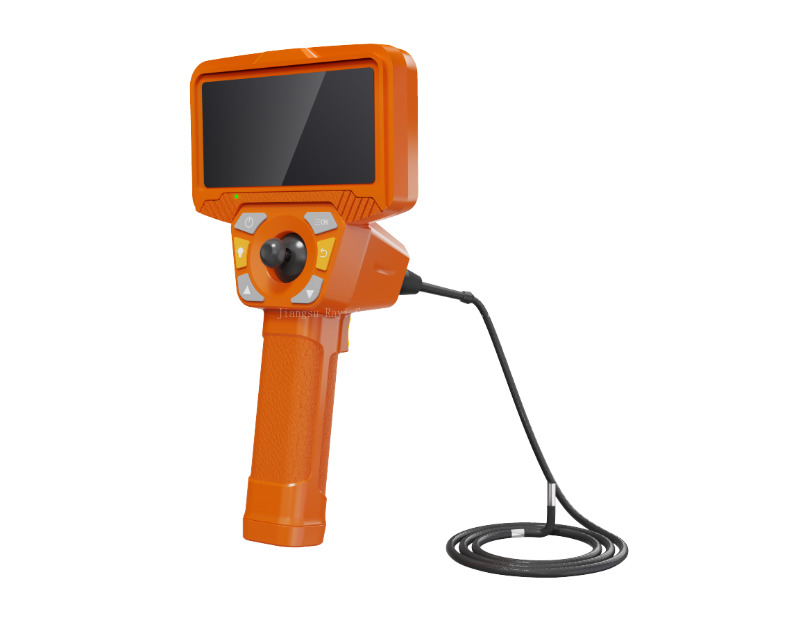

RA60 Portable industrial endoscope, video scope

Display

5-inch IPS high-definition display screen

Resolving power

854*480

Output port

TYPE-C

Storage

Standard 32G TF card，Support up to 128G

Power

26650 battery, battery life ≧4 hours

IP grade

IP54

Working temperature

-10℃～50℃

Storage temperature

−20℃～60℃

Relative humidity

Max 90%，No condensation

System

Operation System

Multifunctional operating system

Operation method

Button navigation, one click photography and recording

Support Function

With freeze, zoom, photo, flip, video playback, analog ruler functions

File Format

Image:JPEG（JPG)，Video:mov

Support Language

Chinese, English, German, French, Russian, Spanish, Italian,Polish, Japanese, Ukrainian, and other languages

Packing Case

Weight

L*W*H

345×265×91mm

RA6010

RA6020

RA6030

Lens

Direction

Direct view

View angle(θ)

120°

DOF

12mm~200mm

Pixel

1MP

Illuminating  system

Rear high-power LED fiber optic transmission

Probe

Length(L)

13±0.5mm

Diameter(D)

6mm

Articulating

360° full direction articulation

Bending Angle(ɑ)

170°±10°

160°±10°

Brightness of

Illumination

1m

1m<L≤2m

2m<L≤3m

≥70000Lux

≥63000Lux

≥56000Lux

IP grade

IP67

Working temperature

-20°C~70°C

Insert tube

Length

1m

2m

3m

Material

Flexible (tungsten braided tube)
