Hawkeye Q2 HD Video Borescopes

PRODUCTS > Security & Search > Hawkeye Q2 HD Video Borescopes

Hawkeye Q2 HD Video Borescopes

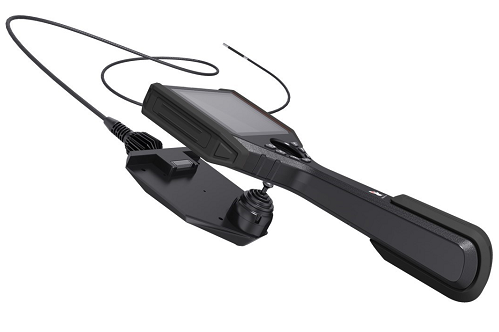

The Q2 HD Video Borescopes are a seamless transition from our V2 with 6x the resolution in a more compact and portable design. The Q2 is offered in both 3.9 and 6mm, with lengths up to 7.5 meters. The Q2 features 4-way joystick articulation, 4-hour integrated battery, interchangeable insertion tubes, and a dual camera option. The HD camera provides users with high-resolution images and videos which can be captured onto the micro-sd card.

Hawkeye® Q2 HD Video Borescope features diameters of 3.9 and 6mm. The Q2 features new technology that will allow our customers to change insertion tubes, and offer a dual 0 and 90 camera view.  The Q2 Video Borescopes offer 4-way joystick articulation, image and video capture, and 4 hour battery life combined with a compact, portable and durable design.

Expanding on the popular Hawkeye V2 and V3, which were launched in 2012, the new Q2 incorporates technological advancements that expand the offering of video borescopes offered by Gradient Lens Corporation.

The Q2 easily displays and captures crystal clear video and still images, and does so using a lightweight, and user-friendly compact design. The Q2 is a valuable tool for our customers who have a variety of length and diameters needs but don’t have the budget to purchase multiple systems.

Diameter3.9 and 6.0mm (.154 and .236" )
Lengths3.9mm: 1.5meter (3'3"), 3meter (9'10") *
6mm: 1.5meter (3'3"), 3meter (9'10"), 7.5meter (24'6")
Articulation1.5 - 3.0m length: +/-140° min. (+/- 10°)
7.5m length: +/- 100° min. (+/- 10°)
Field-of-View80° Diagonal +/- 10° **
Depth-of-Field8mm - infinity***
Direction-of-View
90° ****
0 & 90° (Dual View)
SheathTungsten Braid
IlluminationIntegrated White LED
Display5" HD Display
Camera1MP Color CMOS
InterfacesHDMI, USB, Micro-SD
Battery4 hr. run time, Rechargeable Li-Ion
Recording MediaMicro-SD Card
Digital Photo FormatJPEG
Video FormatMPEG 4
Operating Temp. RangeProbe: - 20 to +60C (-4 to +140 F) :
Display Unit: -10to +50C (14 to +122F)
Storage Temp. Range- 20 to + 60 C (-4 to +140 F)
Weight2.2LB
EnvironmentalSheath: IP67  Host: IP54
